VEMAG HP10E, LPG 209, AH 212

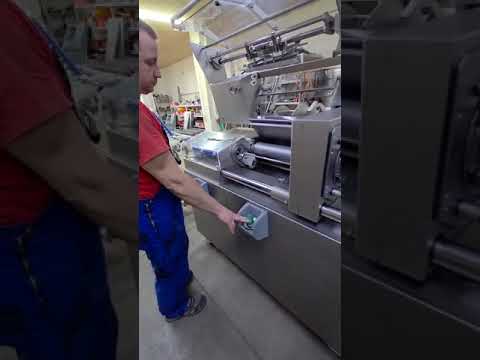

Sausage line
The line include:
HP10 E type 161
Continuous vacuum filler for straight filling and portioning
Machine features:
All in one 250 l hopper
Standard double screw
Standard double screw housing
Integrated CAN-bus control:
Graphical display
Double screw drive with 7.0 kw AC servo
Infeed scroll drive with 4 kw AC motor with frequency inverter
Nominal output, total: 14 KW ;21 A
VEMAG lifting and tipping device for HPE with 250 l hopper
To fit standard trolley, 200 l capacity
VEMAG high-performance linking machine for identical lengths with casing magazine LPG 209 :
For linking and portioning all common types of casing in identical lengths
With casing magazine for COLLAGEN, POLYAMIDE or CELLULOSE CASINGS
For sausage calibres from 13 to 40 mm
For shirred casing lengths up to 430 mm
For sausage lengths from 20 mm to approx. 400 mm
Nominal output, total: 6,0 KW
Compressed air: 6 bar, 10 l/min
VEMAG sausage hanging machine AH type 212
VEMAG Flexible sausage hanging machine AH type 212, long version
AC servo drive controlled by the VEMAG portioning computer of the vacuum filler ONLY with CAN-BUS
Csdpfx Aov Sq Hmsflorh
Number of sausages per hook (1 up to 30) depending on type of sausage (e.g. cocktail sausages = high number of sausages per hook, max. 1500 g)
Maximum hook feed 200/min
Total nominal output: 0,5 KW
Total length 4 150 mm
Total VEMAG sausage line dimensions:
Length – 8000mm
Width – 1350mm
